Leading Manufacturer of High Pressure Pumps, High Pressure Triplex Plunger Pump, Triplex High Pressure Plunger Pump, Industrial Plunger Pumps India
DNHT – 75 Triplex
Plunger Diameter |
Pressure Kg/ Cm2 |
Flow Rate in LPM At Standard Stroke Frequency | |||||||
100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | ||
10 | 350 | 0.47 | 0.93 | 1.40 | 1.87 | 2.33 | 2.80 | 3.27 | 3.73 |
15 | 155 | 1.05 | 2.10 | 3.17 | 4.20 | 5.25 | 6.30 | 7.35 | 8.40 |
20 | 88 | 1.90 | 3.77 | 6.65 | 7.53 | 9.37 | 11.30 | 13.19 | 15.13 |
25 | 55 | 2.94 | 5.87 | 8.80 | 11.73 | 14.67 | 17.60 | 20.53 | 23.47 |
30 | 30 | 4.23 | 8.47 | 12.70 | 16.93 | 21.33 | 25.40 | 29.63 | 33.87 |
DNHT – 100 Triplex
Plunger Diameter |
Pressure Kg/ Cm2 |
Flow Rate in LPM At Standard Stroke Frequency | |||||||
100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | ||
10 | 402 | 0.17 | 1.05 | 1.58 | 2.12 | 2.65 | 3.77 | 3.70 | 4.23 |
15 | 173 | 1.18 | 2.37 | 3.57 | 4.77 | 5.95 | 7.15 | 8.33 | 9.52 |
20 | 98 | 2.21 | 4.23 | 6.35 | 8.47 | 10.60 | 12.70 | 14.80 | 16.90 |
25 | 62 | 3.13 | 6.60 | 9.90 | 13.20 | 16.50 | 19.80 | 23.10 | 26.40 |
30 | 43 | 4.77 | 9.53 | 14.23 | 19.10 | 23.80 | 28.60 | 33.13 | 38.10 |
DNHT – 200 Triplex
Plunger Diameter |
Pressure Kg/ Cm2 |
200 Rpm | 300 Rpm | 400 Rpm | 500 Rpm | 600 Rpm |
Litres/m | Litres/m | Litres/m | Litres/m | Litres/m | ||
10 | 804 | 1.6 | 2.5 | 3.3 | 4.2 | 5.0 |
15 | 257 | 3.6 | 5.7 | 7.6 | 9.5 | 11.4 |
20 | 196 | 6.7 | 10.2 | 13.5 | 16.9 | 20.3 |
25 | 124 | 10.6 | 15.9 | 21.1 | 26.5 | 31.8 |
30 | 86 | 15.2 | 22.8 | 30.5 | 38.1 | 45.7 |
35 | 63 | 20.7 | 31.1 | 41.5 | 51.9 | 62.3 |
DNHT – 300 Triplex
Plunger Diameter |
Pressure Kg/ Cm2 |
200 Rpm | 300 Rpm | 400 Rpm | 500 Rpm | 600 Rpm |
Litres/m | Litres/m | Litres/m | Litres/m | Litres/m | ||
20 | 344 | 7 | 11 | 15 | 19 | 22 |
25 | 218 | 11 | 17 | 23 | 29 | 35 |
30 | 150 | 17 | 25 | 34 | 42 | 51 |
35 | 111 | 23 | 35 | 46 | 58 | 70 |
40 | 84 | 30 | 45 | 61 | 76 | 91 |
45 | 66 | 38 | 52 | 77 | 96 | 115 |
50 | 54 | 47 | 71 | 95 | 119 | 143 |
DNHT – 400 Triplex
Plunger Diameter |
Pressure Kg/ Cm2 |
200 Rpm | 300 Rpm | 400 Rpm | 500 Rpm |
Litres/m | Litres/m | Litres/m | Litres/m | ||
25 | 436 | 14 | 22 | 29 | 36 |
30 | 301 | 21 | 31 | 42 | 52 |
40 | 169 | 37 | 55 | 74 | 92 |
50 | 109 | 58 | 87 | 116 | 145 |
55 | 89 | 70 | 105 | 141 | 176 |
60 | 75 | 83 | 125 | 167 | 209 |
65 | 64 | 98 | 147 | 197 | 246 |
DNHT – 500 Triplex
Plunger Diameter |
Pressure Kg/ Cm2 |
200 Rpm | 300 Rpm | 400 Rpm |
Litres/m | Litres/m | Litres/m | ||
30 | 473 | 28 | 42 | 57 |
40 | 267 | 50 | 76 | 101 |
50 | 171 | 79 | 119 | 158 |
55 | 141 | 96 | 144 | 192 |
60 | 118 | 114 | 171 | 228 |
70 | 86 | 155 | 233 | 311 |
75 | 75 | 178 | 268 | 357 |
DNHT – 550 Triplex
Plunger Diameter |
Pressure Kg/ Cm2 |
200 Rpm | 300 Rpm | 400 Rpm |
Litres/m | Litres/m | Litres/m | ||
22 | 758 | 17 | 25 | 35 |
30 | 601 | 32 | 48 | 64 |
40 | 337 | 57 | 58 | 115 |
50 | 216 | 88 | 132 | 176 |
70 | 110 | 175 | 262 | 350 |
75 | 96 | 201 | 300 | 402 |
85 | 75 | 258 | 387 | 517 |
DNHT – 700 Triplex
Plunger Diameter |
Pressure Kg/ Cm2 |
200 Rpm | 300 Rpm | 400 Rpm |
Litres/m | Litres/m | Litres/m | ||
50 | 623 | 132 | 198 | 264 |
60 | 429 | 190 | 286 | 381 |
65 | 367 | 223 | 335 | 447 |
70 | 316 | 259 | 389 | 519 |
75 | 274 | 298 | 447 | 596 |
80 | 242 | 339 | 508 | 678 |
85 | 214 | 382 | 574 | 765 |
90 | 190 | 429 | 643 | 858 |
100 | 154 | 529 | 794 | 1059 |

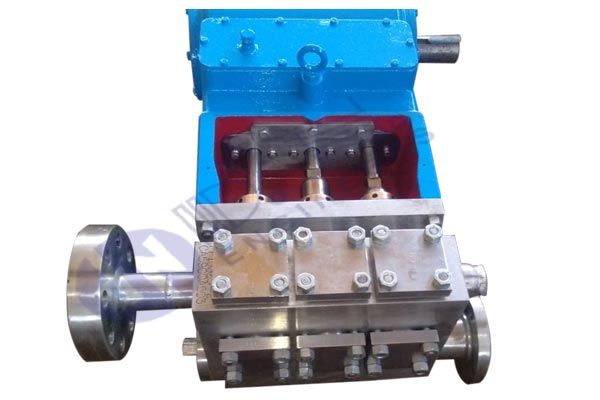

High Pressure Triplex Plunger Pump Manufacturer:-
D.N. Engineers is the foremost spare parts manufacturer and supplier in India. We provide the best spare parts of High Pressure Triplex Plunger Pump that is fabricated by our specialist with their highly advanced facts. This pump is tremendous for testing leakage and reliability from Boiler, Metal Casting, Pressure Vessels, Gas Cylinder, and Pipes & Tubes Part. Pump are supply with different metals like forged stainless steel 304, brass, stainless steel 316, duplex steel, nickel bronze, aluminum bronze etc. D.N. Engineers is fanatical to providing safe and reliable fluid control products and solutions with one-stop service to meet customer demand. Spare Parts is made by qualified experts using latest techniques and provides high quality material. In order to offer fault free materials, we further examine it on various quality parameters.
We keep innovating and have developed a series of plunger pumps and spare parts. Our pump delivers a silky, constant flow and pressure. These pressure triplex plunger pumps can also be motorized by various drives to adjust the flow as needed with changes in demand. The downstream restriction will require modification or a valve to control the change in flow. Due to Its design and the highest quality level, our respectable customers depend on our products to keep their equipment running. It maintains and production managers specify industrial high pressure plunger pumps because they are extremely dependable, provide long service, efficient, reliable, and easy to maintain. We are the High Pressure Triplex Plunger Pump supplier in Ahmedabad, Gujarat, Coimbatore, Mumbai and many more.
Features:
- Dimensional accuracy
- Fine finish
- Corrosion & abrasion resistance
- Longer service life
